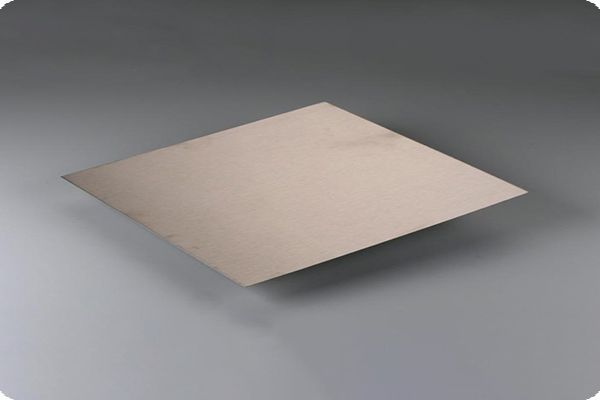

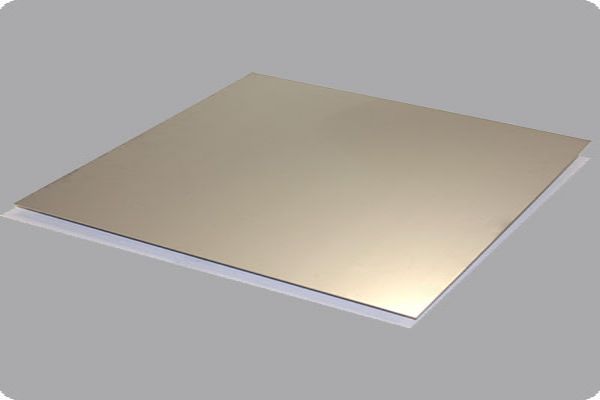

316 Stainless Steel Sheet/Plate

JMJDWX Steel Stainless Steel 316 sheet/plate.It contains an addition of molybdenum that gives it improved corrosion resistance. This is particularly apparent for pitting and crevice corrosion in chloride environments.It is readily brake or roll formed into a variety of parts. It is also suited to boat fittings.Chemical containers, including for transport.Heat Exchangers.Woven or welded screens for mining, quarrying & water filtration.Threaded fasteners.Springs etc.


·Specifications: AISI 316, ASTM A240,   ·Standard:A240 480    ·How is it Measured? thickness X width X length

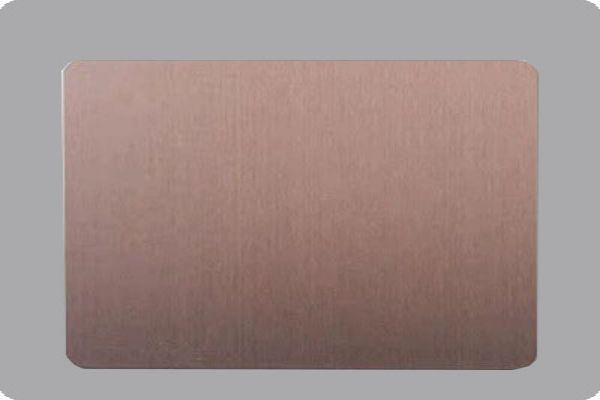

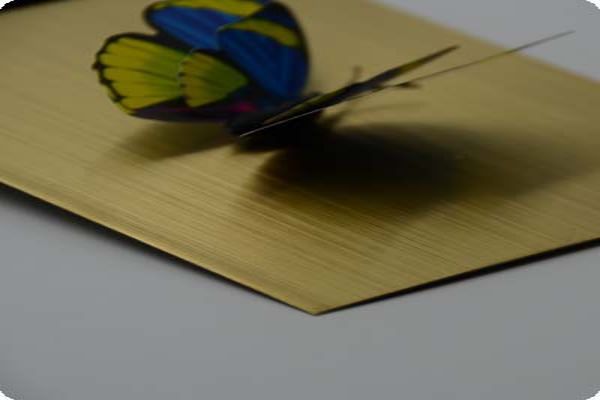

·Finishes:2B Mill (dull), #4 Brushed,#8 Mirror,Hairline,No.1,Golden mirror other stainless steel color.

·Applications:chemical and petrochemical industry, in food processing, pharmaceutical equipment, medical devices, in potable water, wastewater treatment, in marine applications etc.

·Workability: Easy to Weld, Cut, Form and Machine with proper equipment

·Available Stock Sizes: 1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size


Chemical composition and mechanical properties Of stainless steel 316


Chemical properties Of stainless steel 316:

Grade(%)CMnSiPSCrMoNiN
SS3160.082.00.750.0450.03016-182.00-3.0011.00-14.000.1


Mechanical properties Of stainless steel 316:

GradeTensile Strength (MPa)Proof Stress (MPa)Elongation A50 mmHardness Brinell
316500-700200Min40% Min215 Max HB


For cold rolled stainless steel,JM steel will do

·PVC or interleaving paper to protect surface;

·then use waterproof paper;

·steel strip to reinforcement;

·The four corners are made of triangular iron sheet to protect the edges and corners.

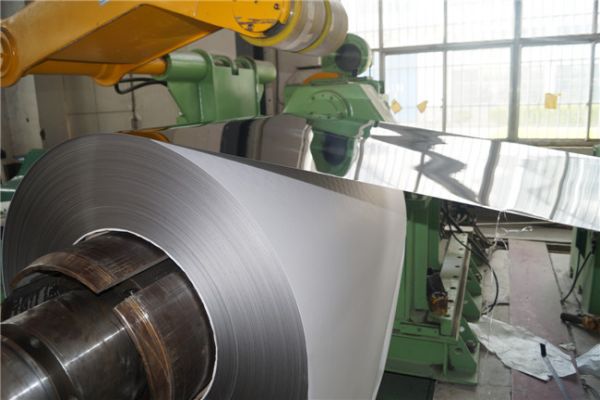

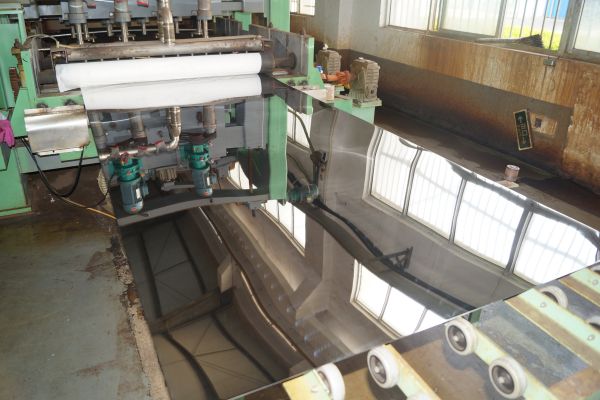

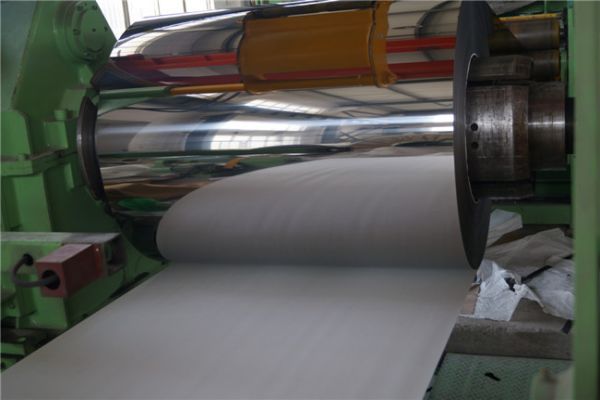

Factory Show:

WHY CHOOSE US ?

·Top 20 companies in stainless steel industry trade volume

·Customized processing stainless steel one-stop purchase

·Exports of stainless steel exceeded tens of billions for 5 consecutive years

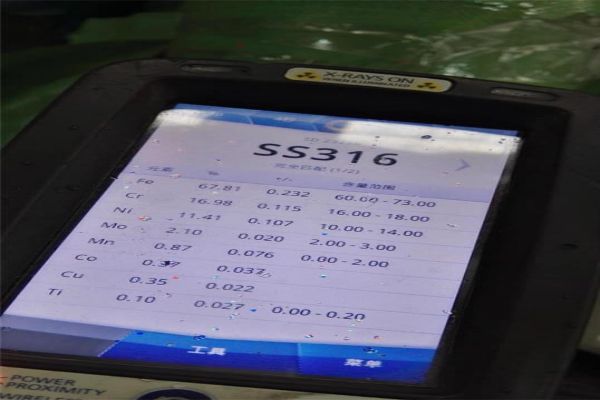

·We have a complete set of testing equipment, such as ut & ET, hydrauilc testinge quipment, spectrometer, scanning electron microscope, etc, and have passed SGS TUV certification

·JM Steel has hundreds of millions of high-end processing equipment at home and abroad, including precision cutting equipment: advanced Italian Nova stainless steel Kaiping production line, Taiwan Weitai stainless steel cross-cutting line, Taiwan Weitai stainless steel slitting line, large-scale stainless steel cold and hot rolling Flattening machine, slitting machine, etc


For More details of each item,contact our sales to know more about it.Thanks for your visiting of JMJDWX Steel,save our web.You will be more professional in steel industry.
