309S Stainless Steel Sheet/Plate

JMJDWX Steel 309s Stainless Steel Sheet/Plate


is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high-temperature strength, and creep resistance. The lower nickel content of Stainless Steel 309, compared to Stainless Steel 310, improves its resistance to hydrogen sulfide (H2S) attack at high temperatures. It is tough and ductile and can be readily fabricated and machined. SS 309S is the low-carbon version, and is recommended for applications where sensitization and subsequent corrosion by high temperature gases or condensates during shutdown may pose a problem.


Specifications:   AISI 309s, ASTM 309s

Standard:  A240 480

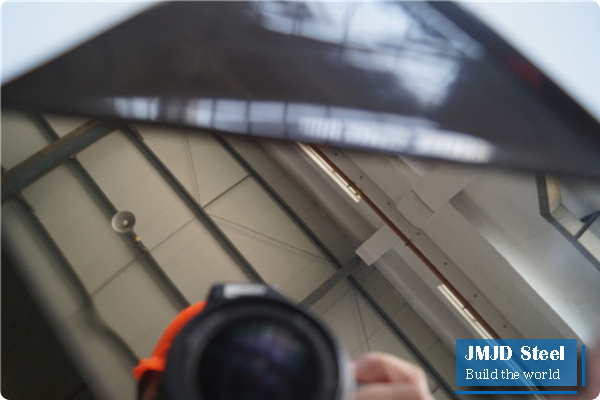

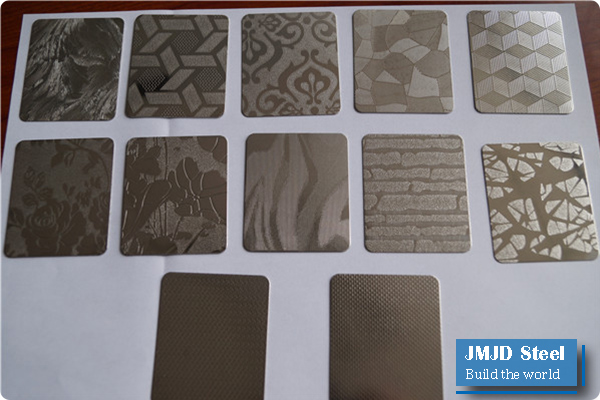

Finishes:  Ba surface, 2b surface, No.1 (white skin), HL (wire drawing), 8K surface have excellent surface quality and good brightness.

Applications:  metal structures, Architectural applications, Food industry, chemical and oil industry, pharmaceutical industry, nuclear    industry, Naval industry, non-magnetic constructions, cryogenic service, high temperature service application Steel type

How is it Measured:   thickness X width X length

Available Stock Sizes:   1ft x 4ft, 2ft x 2ft, 2ft x 4ft, 4ft x 4ft, 4ft x 8ft, 4ft x 10ft or Cut to Size


Mill tolerances on thickness & flatness applies.Call JMJDWX Steel if you need specific sizes or grain direction.


Chemical composition and mechanical properties Of Stainless Steel 309S.


chemical composition(% ) of 309s Stainless Steel Plate
ElementCSiMnSPCrNi
Content≤0.08≤1.00≤2.00≤0.030≤0.04522.00~24.0012.00~15.00


Mechanical properties Of  309s Stainless Steel Plate

Performanceyield strength/MPaTensile strength/MPaElongation /%Reduction of area /%
Proportion≥ 205≥ 515≥ 40≥50


Packing:

*For cold rolled stainless steel,JM steel will do

*PVC or interleaving paper to protect surface

*then use waterproof paper

*steel strip to reinforcement

*The four corners are made of triangular iron sheet to protect the edges and corner

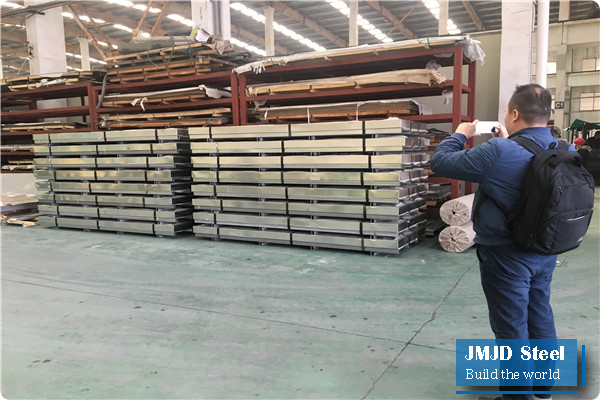

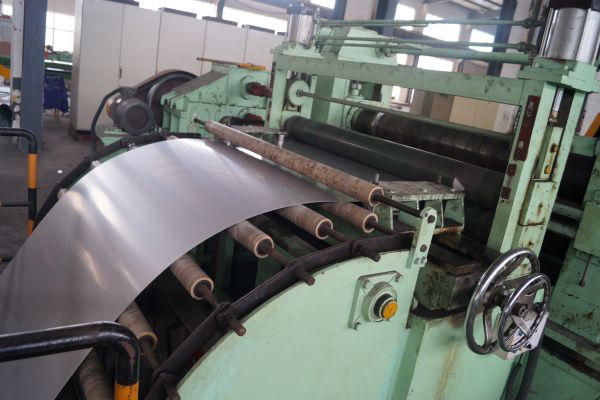

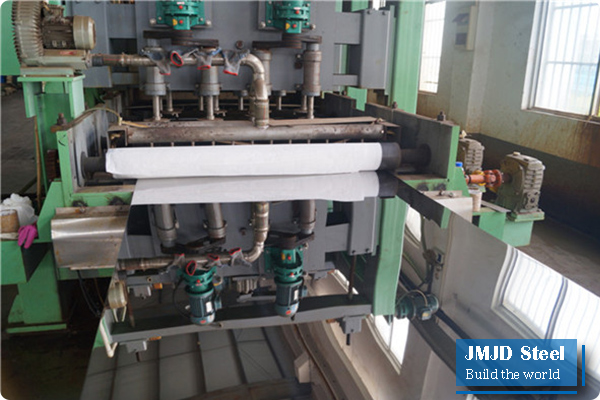

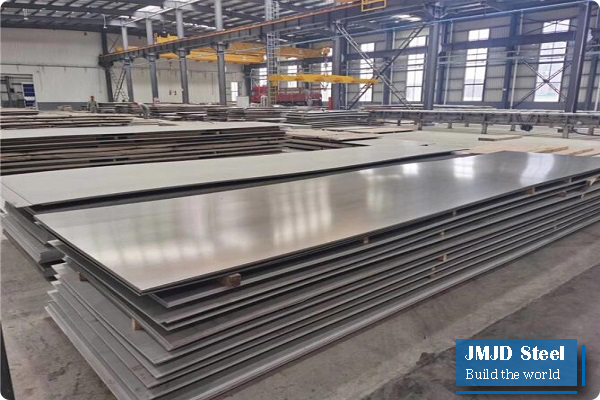

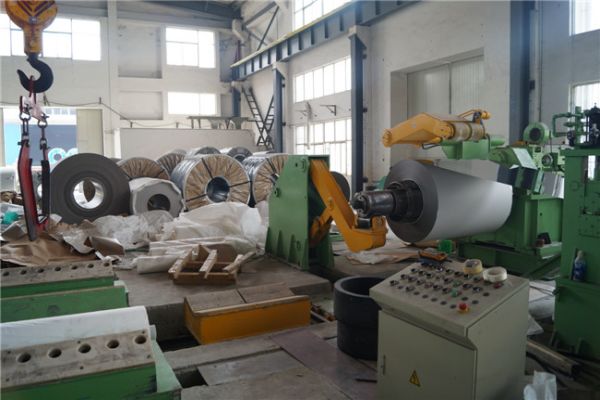

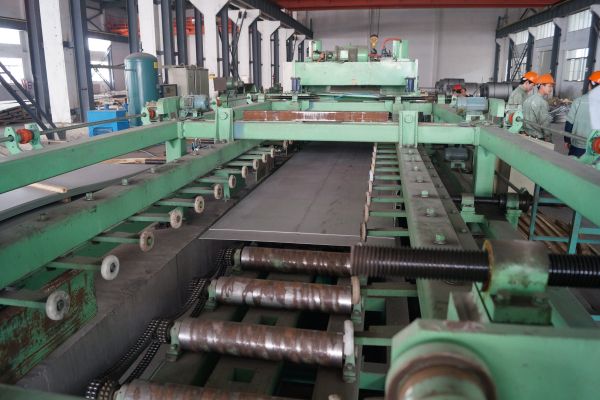

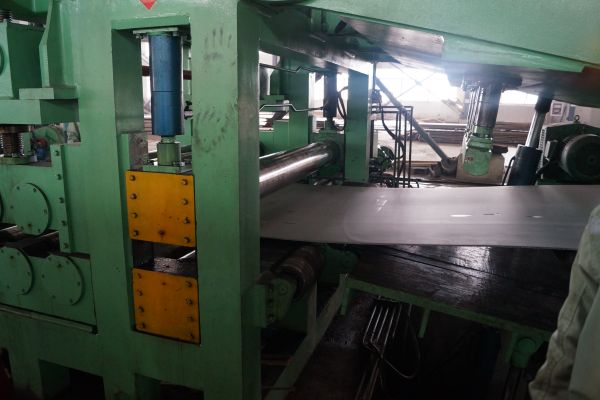

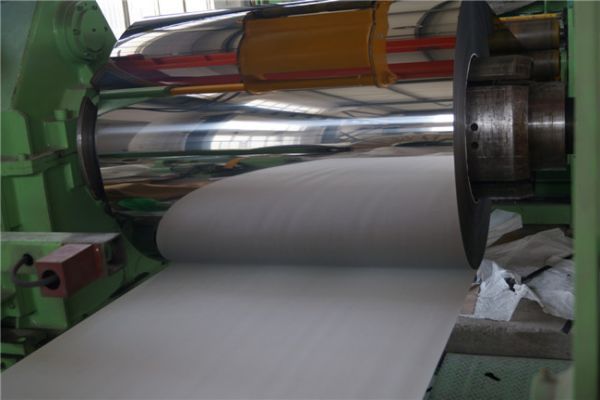

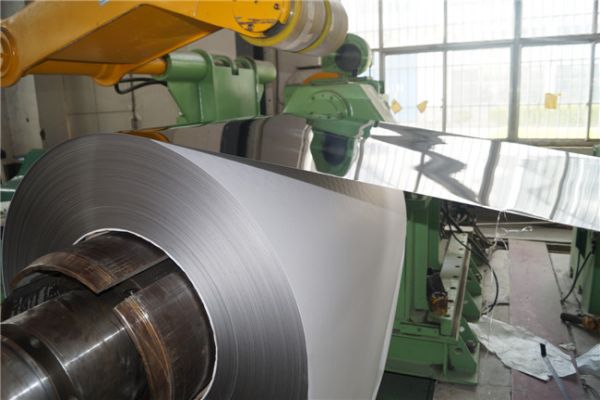

Factory Show:


Why choose us?

*Top 20 companies in stainless steel industry trade volume.

*Customized processing stainless steel one-stop purchase.

*Exports of stainless steel exceeded tens of billions for 5 consecutive years.

*We have a complete set of testing equipment, such as ut & ET, hydrauilc testinge quipment, spectrometer, scanning electron       microscope, etc, and have passed SGS TUV certification

*JM Steel has hundreds of millions of high-end processing equipment at home and abroad, including precision cutting equipment: advanced Italian Nova stainless steel Kaiping production line, Taiwan Weitai stainless steel cross-cutting line, Taiwan Weitai stainless steel slitting line, large-scale stainless steel cold and hot rolling Flattening machine, slitting machine, etc


For More details of each item,contact our sales to know more about it.Thanks for your visiting of JMJDWX Steel,save our web.You will be more professional in steel industry.
