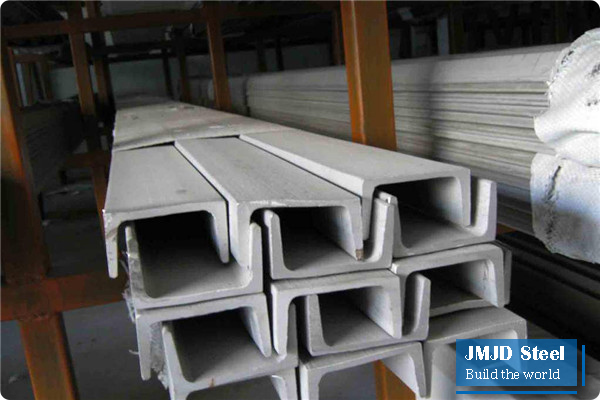

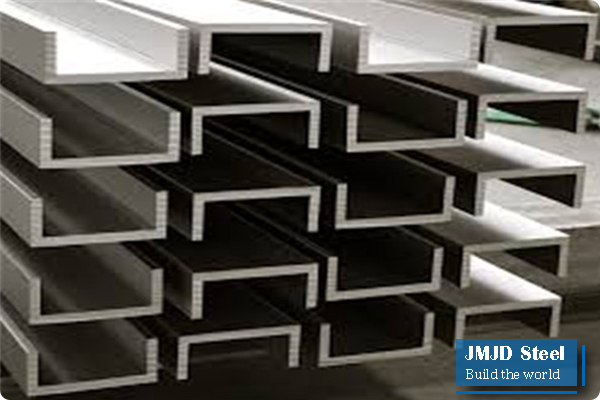

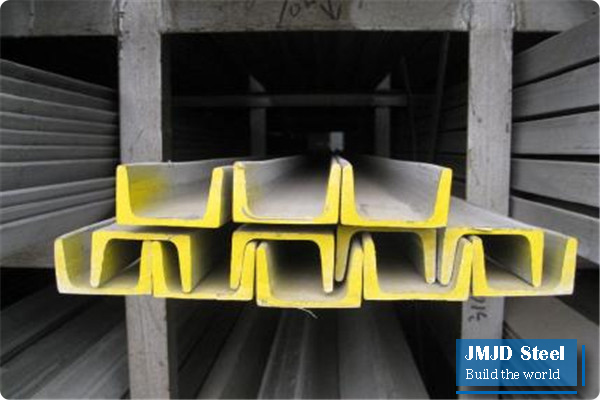

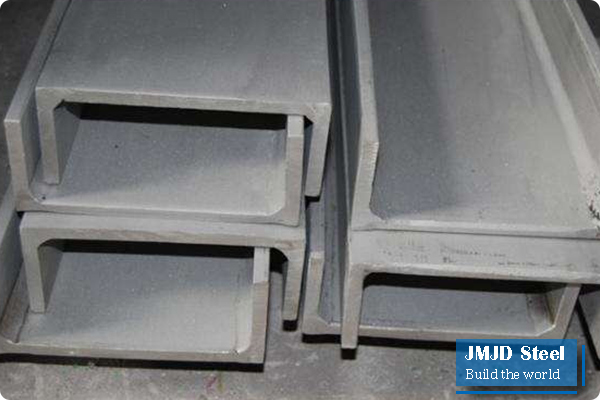

316 Stainless Steel Profiles/Channel

JMJDWX Steel Stainless Steel 316 Profile.Grade 316l is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels.  It has excellent forming and welding characteristics. It is readily brake or roll formed into a variety of parts for applications in the industrial, architectural, and transportation fields. Grade 316l also has outstanding welding characteristics. Post-weld annealing is not required when welding thin sections.

·Specifications:  AISI 316, ASTM A240

·Standard: A240 480

·Finishes: 2B Mill (dull), #4 Brushed,#8 Mirror,Hairline,No.1.

·Applications: chemical and petrochemical industry, in food processing, pharmaceutical equipment, medical devices, in potable water, wastewater treatment, in marine applications etc

·Workability: Easy to Weld, Cut, Form and Machine with proper equipment

·Corrosion resistance: Grade 316l has excellent corrosion resistance in a wide range of media. Its main advantage over grade 304 is its increased ability to resist pitting and crevice corrosion in warm chloride environments. It resists ordinary rusting in virtually all architectural applications, and is often chosen for more aggressive environments such as sea-front buildings and fittings

Chemical composition and mechanical properties Of stainless steel 316

Chemical composition Of stainless steel 316:


Mechanical properties Of stainless steel 316 :

GradeTensile Strength (MPa)Proof Stress (MPa)Elongation A50 mmHardness Brinell
316500-700200Min40% Min215 Max HB

PACKING:JM steel will use waterproof paper steel strip and wooden cases.


·Top 20 companies in stainless steel industry trade volume

·Customized processing stainless steel one-stop purchase

·Exports of stainless steel exceeded tens of billions for 5 consecutive years

·We have a complete set of testing equipment, such as ut & ET, hydrauilc testinge quipment, spectrometer, scanning electron microscope, etc, and have passed SGS TUV certification

·JM Steel has hundreds of millions of high-end processing equipment at home and abroad, including precision cutting equipment: advanced Italian Nova stainless steel Kaiping production line, Taiwan Weitai stainless steel cross-cutting line, Taiwan Weitai stainless steel slitting line, large-scale stainless steel cold and hot rolling Flattening machine, slitting machine, etc

For More details of each item,contact our sales to know more about it.Thanks for your visiting of JMJDWX Steel,save our web.You will be more professional in steel industry.
